CNC Turning



Quality CNC Turning Services

Computer- controlled cutting tool is applied to material spinning at a high
RPM, creating a part with rotational symmetry.



  • Live mill turn machining
  • .0625 diameter-12″ diameter up to 72″ long
  • .015″ diameter to .785″ diameter x 144″ long -live tooling-
  • Machine all metals and alloys
  • We use modular tooling to enable quick set-ups

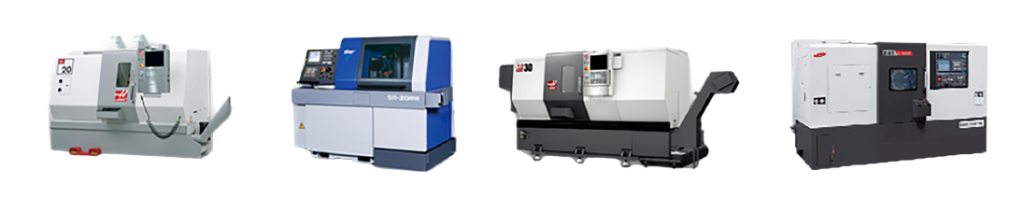

Turning Equipment



  • Samsung SL-2500BY with Live Tooling
  • STAR SR 16, Swiss turning 5/8″ bar size
  • MONARCH, Predator P-10 CNC with 2-1/2″ Bar feed 10″ chuck 20″ between centers
  • OKUMA, Model LC-20 Precision CNC Lathe 8″ chuck 18″ centers
  • HARDINGE, Chucker with high speed threading attachment
  • HARDINGE, Hand Screw, DSM-59
  • HARDINGE, CNC2, FANUC Control, 1-5/8″ dia. capacity
  • HARDINGE, CNC Control, 4″ dia. capacity
  • HARDINGE, CHNC I
  • HAAS Model SL-30 Slant Bed 17″ Swing x 34″ Centers
  • HAAS Model SL-30 Slant Bed 17″ Swing x 60″ Centers
  • Engine Lathe with 16″ x 48″ centers
  • HAAS Model SL-20
  • HAAS Model ST-30 12″ chuck
  • ST 10 Sevo Bar 300



Outer Diameter

Minimum: 0.008″

Maximum Chucked 18”



Overall Lengths

Minimum: Inquire

Maximum: 144″



Tolerances

0.0005″ Precision, Tight tolerance, Ultra-precision



Industry Focus

Aerospace, Automation, Bio-Tech Test Equipment, Defense, Dental Instruments, Fiber Optics, Hand Tools, Industrial Valve, Medical, Oil & Gas, Pump and Valve, Optics, OEM, Semi-Conductor



Intended Application

Armatures, Axels, Bolts, Bushings, Coupling Shafts, Dowels, Driveshafts, Fasteners, Handles, Housing, Knobs, Needle Valves, Nozzles, Pins, Pivot Rods, Precision Electronic Hardware, Punch Blanks, Sleeves, Spacers, Valve Bodies, Valve Stems



Features Possible

Boring, Broaching, Cross Tapping, Custom Tapping, Drilling, Eccentric Holes, Grinding, Gear Profiles, Knurling, Milling, Slotting, Spline Profiles, Thread Milling, Threading External, Threading Internal, Thread Whirling-Swiss Machining, Pointing, Reaming, Tapping, Turning (Contour, Form Turning, Taper Turning, Straight Turning), Sawing



Production Volume

Precision Production Shop, Prototype, Short Runs, Long Runs, Low Volume, High Volume



Lead Times

4-6 Weeks is standard lead time based on capacity
Blanket Orders
Quick turn around on lapping and grinding based on capacity



Industry Standards

ISO 9001: 2008- Certified



Equipment

Live tooling-Swiss Turning, CNC Control Capabilities, Fully Integrated Bar Feeders



Quality Documentation

Inspection Reports, First Article Inspection, SPC Charts and CPK Data if needed



Materials

Alloy Steels (4130, 4140) and many more, Aluminum (2011, 6061, T6, 2024), Beryllium Copper, Brass, Bronze Alloys, Carbon Steel, Colbat, Copper, Hasteloy, Inconel, Invar, Kovar, MP35N, Nickel, Nickel Iron, Nirtonic 80, Nirtonic 60, Stainless Steel (303, 304, 316, 321, 303SE, 420, 440C, 17-4), Stellite, Titanium, Tungsten, Zirconium



Materials & Plastic Polymers

ABS, Acetal, Acrylic, Fiberglass Reinforced Plastics, Nylon, Phenolic, Polyamide-Imide, Polycarbonate (Delrin), Polyetheretherketone (Peek), Polyetherimide, Polyethylene, Polyphenylene Sulfide, Polypropylene, Polystyrene, Polysulphone, PTPFE (Polytetrafluoroethylenes), PVC (Polyvinyl Chloride), PVDF (Polyvinylidene Fluoride), Teflon
